Name: LTC1146ACN
Brand: Analog Devices Inc.
SKU: LTC1146ACN
Availability: InStock

REF: LTC1146ACN Analog Devices Inc.

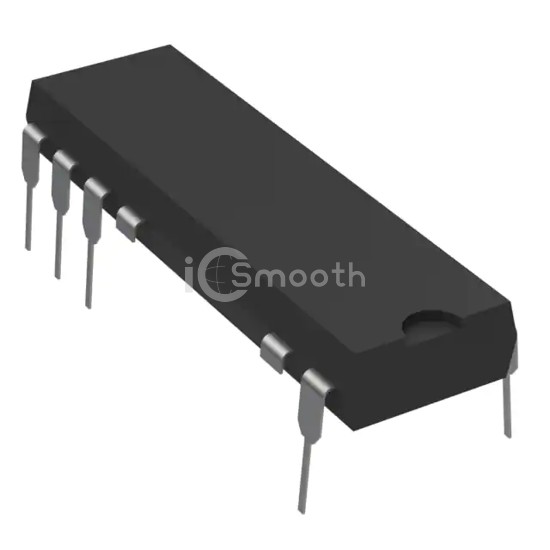

LTC1146ACN

DGTL ISO 2.5KV OR 3KV 1CH 18DIP

LTC1146ACN is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISO 2.5KV OR 3KV 1CH 18DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 18-DIP (0.300", 7.62mm), 12 Leads.

Datasheet Request a Quote

In Stock: 9,350

Specifications

18 parameters

Product Status	Obsolete
Technology	-
Type	-
Isolated Power	-
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Channel Type	-
Voltage - Isolation	2500Vrms or 3000Vrms
Common Mode Transient Immunity (Min)	-

Data Rate	20kHz
Propagation Delay tpLH / tpHL (Max)	-
Pulse Width Distortion (Max)	-
Rise / Fall Time (Typ)	-
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Package / Case	18-DIP (0.300", 7.62mm), 12 Leads
Supplier Device Package	18-PDIP
