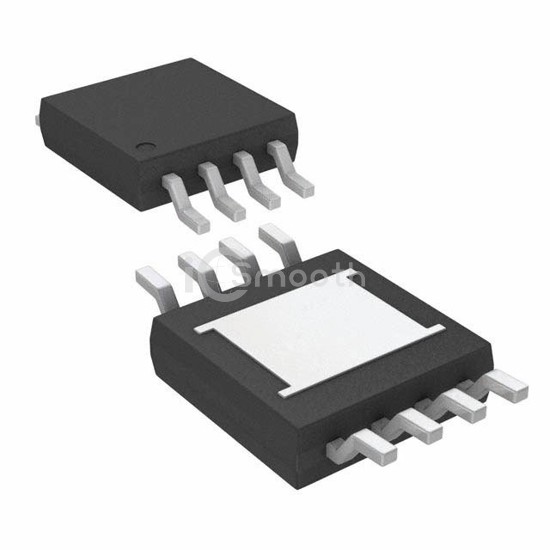

Name: LT8570HMS8E#TRPBF
Brand: Analog Devices Inc.
SKU: LT8570HMS8E#TRPBF
Price: 4.01 USD
Availability: InStock

REF: LT8570HMS8E#TRPBF Analog Devices Inc.

LT8570HMS8E#TRPBF

Analog Devices Inc.

BOOST/SEPIC/INVERTING DC/DC CONV

LT8570HMS8E#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. BOOST/SEPIC/INVERTING DC/DC CONV. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad, current - output 500mA (Switch).

Datasheet Request a Quote

In Stock: 2,218

Specifications

17 parameters

Product Status	Active
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive or Negative
Topology	Boost, Cuk, SEPIC
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.55V
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	0.003V, 1.204V

Voltage - Output (Max)	65V (Switch)
Current - Output	500mA (Switch)
Frequency - Switching	200kHz ~ 1.5MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package	8-MSOP-EP
