Name: LT8315EFE#PBF
Brand: Analog Devices Inc.
SKU: LT8315EFE#PBF
Price: 12.43 USD
Availability: InStock

REF: LT8315EFE#PBF Analog Devices Inc.

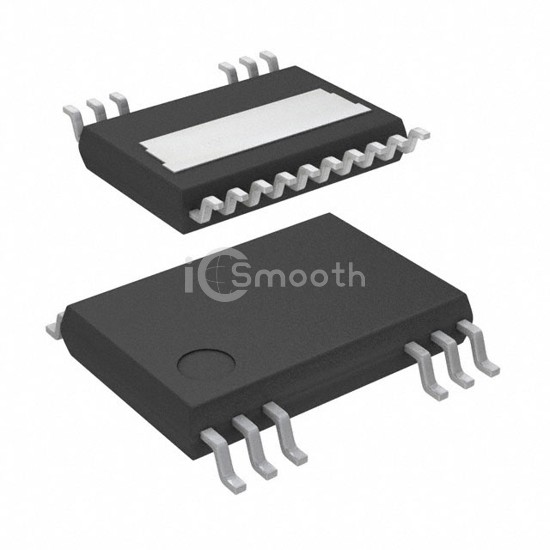

LT8315EFE#PBF

Analog Devices Inc.

IC REG FLYBACK 800MA 20TSSOP

LT8315EFE#PBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG FLYBACK 800MA 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad, current - output 800mA.

Datasheet Request a Quote

In Stock: 6,968

Tiered Pricing USD

1+ $12.4300 —

10+ $8.5530 -31%

74+ $6.6170 -47%

148+ $6.1467 -51%

296+ $6.1250 -51% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down, Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Topology	Flyback
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	560V
Voltage - Output (Min/Fixed)	-

Voltage - Output (Max)	-
Current - Output	800mA
Frequency - Switching	220Hz ~ 140kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad
Supplier Device Package	20-TSSOP-EP
