LT5506EUF#TRPBF

In Stock: 6,808

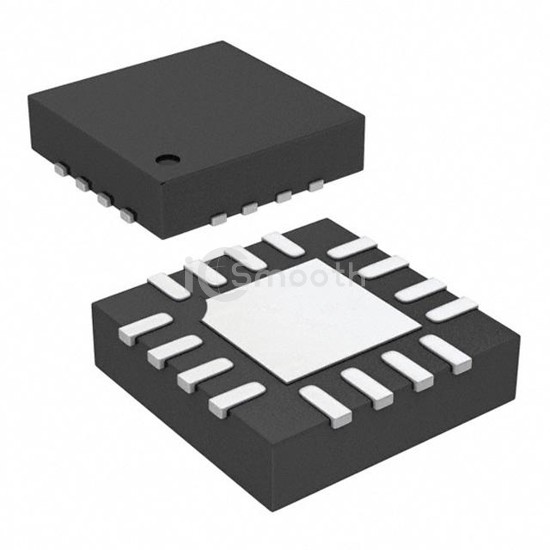

LT5506EUF#TRPBF - Analog Devices Inc. - RF Demodulators
REF: LT5506EUF#TRPBF Analog Devices Inc.
LT5506EUF#TRPBF

Analog Devices Inc.

IC DEMOD QUADRATURE VGA 16QFN

LT5506EUF#TRPBF is a RF Demodulators manufactured by Analog Devices Inc.. IC DEMOD QUADRATURE VGA 16QFN. Key specifications: mounting type Surface Mount, voltage - supply 1.8V ~ 5.25V, package / case 16-WQFN Exposed Pad, current - supply 36 mA.

Datasheet Request a Quote

In Stock: 6,808

Specifications

12 parameters
Product StatusActive
FunctionDemodulator
LO Frequency80MHz ~ 1GHz
RF Frequency40MHz ~ 500MHz
P1dB-
Gain59dB
Noise Figure6.8dB
Current - Supply36 mA
Voltage - Supply1.8V ~ 5.25V
Mounting TypeSurface Mount
Package / Case16-WQFN Exposed Pad
Supplier Device Package16-QFN (4x4)
