Name: LT3956IUHE#PBF
Brand: Analog Devices Inc.
SKU: LT3956IUHE#PBF
Price: 10.59 USD
Availability: InStock

REF: LT3956IUHE#PBF Analog Devices Inc.

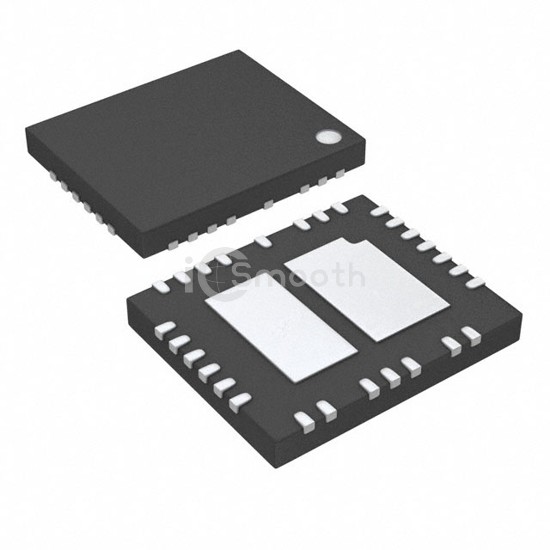

LT3956IUHE#PBF

Analog Devices Inc.

IC LED DRVR RGLTR PWM 3.3A 36QFN

LT3956IUHE#PBF is a PMIC - LED Drivers manufactured by Analog Devices Inc.. IC LED DRVR RGLTR PWM 3.3A 36QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - output 80V, package / case 36-WFQFN, 28 Leads, Exposed Pad.

Datasheet Request a Quote

In Stock: 8,735

Tiered Pricing USD

1+ $10.5900 —

10+ $7.2940 -31%

61+ $6.1500 -42% BEST

Specifications

16 parameters

Product Status	Active
Type	DC DC Regulator
Topology	Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s)	Yes
Number of Outputs	1
Voltage - Supply (Min)	4.5V
Voltage - Supply (Max)	80V
Voltage - Output	80V

Current - Output / Channel	3.3A (Switch)
Frequency	100kHz ~ 1MHz
Dimming	Analog, PWM
Applications	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	36-WFQFN, 28 Leads, Exposed Pad
Supplier Device Package	36-QFN (5x6)
