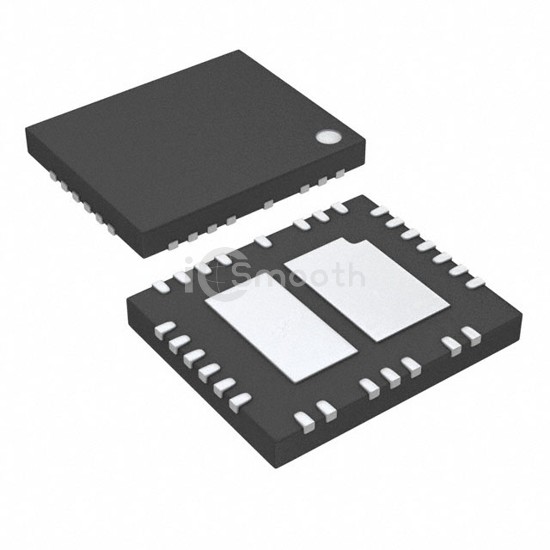

Name: LT3956EUHE#TRPBF
Brand: Analog Devices Inc.
SKU: LT3956EUHE#TRPBF
Price: 11.05 USD
Availability: InStock

REF: LT3956EUHE#TRPBF Analog Devices Inc.

LT3956EUHE#TRPBF

Analog Devices Inc.

IC LED DRVR RGLTR PWM 3.3A 36QFN

LT3956EUHE#TRPBF is a PMIC - LED Drivers manufactured by Analog Devices Inc.. IC LED DRVR RGLTR PWM 3.3A 36QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - output 80V, package / case 36-WFQFN, 28 Leads, Exposed Pad.

Datasheet Request a Quote

In Stock: 2,027

Tiered Pricing USD

1+ $11.0500 —

10+ $7.5500 -32%

25+ $6.6376 -40%

100+ $5.6059 -49%

250+ $5.2375 -53% BEST

Specifications

16 parameters

Product Status	Active
Type	DC DC Regulator
Topology	Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s)	Yes
Number of Outputs	1
Voltage - Supply (Min)	4.5V
Voltage - Supply (Max)	80V
Voltage - Output	80V

Current - Output / Channel	3.3A (Switch)
Frequency	100kHz ~ 1MHz
Dimming	Analog, PWM
Applications	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	36-WFQFN, 28 Leads, Exposed Pad
Supplier Device Package	36-QFN (5x6)
