Name: LT3782EFE
Brand: Analog Devices Inc.
SKU: LT3782EFE
Availability: InStock

REF: LT3782EFE Analog Devices Inc.

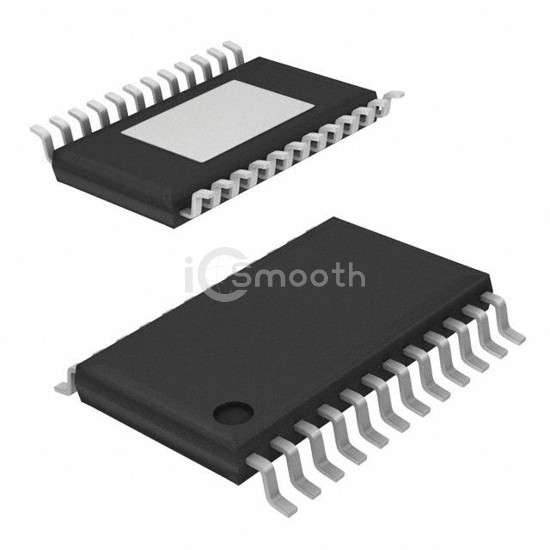

LT3782EFE

IC REGULATOR

LT3782EFE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply (vcc/vdd) 6V ~ 40V, package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 4,242

Specifications

18 parameters

Product Status	Obsolete
Output Type	Transistor Driver
Function	Step-Up
Output Configuration	Positive
Topology	Boost
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	6V ~ 40V
Frequency - Switching	154kHz ~ 465kHz

Duty Cycle (Max)	94%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Enable, Reset, Soft Start
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	28-TSSOP-EP
