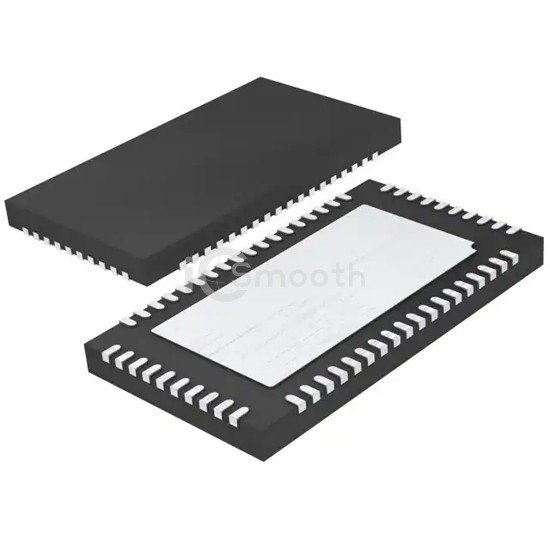

Name: LT3746EUHH#PBF
Brand: Analog Devices Inc.
SKU: LT3746EUHH#PBF
Price: 14.29 USD
Availability: InStock

REF: LT3746EUHH#PBF Analog Devices Inc.

LT3746EUHH#PBF

Analog Devices Inc.

IC LED DRVR CTRLR PWM 30MA 56QFN

LT3746EUHH#PBF is a PMIC - LED Drivers manufactured by Analog Devices Inc.. IC LED DRVR CTRLR PWM 30MA 56QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 56-WFQFN Exposed Pad, current - output / channel 30mA.

Datasheet Request a Quote

In Stock: 6,134

Tiered Pricing USD

1+ $14.2900 —

10+ $9.9270 -31%

40+ $8.3010 -42%

120+ $7.3750 -48% BEST

Specifications

16 parameters

Product Status	Active
Type	DC DC Controller
Topology	Step-Down (Buck)
Internal Switch(s)	No
Number of Outputs	32
Voltage - Supply (Min)	6V
Voltage - Supply (Max)	55V
Voltage - Output	-

Current - Output / Channel	30mA
Frequency	205Hz ~ 1.05MHz
Dimming	PWM
Applications	Backlight, Signage
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	56-WFQFN Exposed Pad
Supplier Device Package	56-QFN (5x9)
