Name: LT3580IMS8E
Brand: Analog Devices Inc.
SKU: LT3580IMS8E
Availability: InStock

REF: LT3580IMS8E Analog Devices Inc.

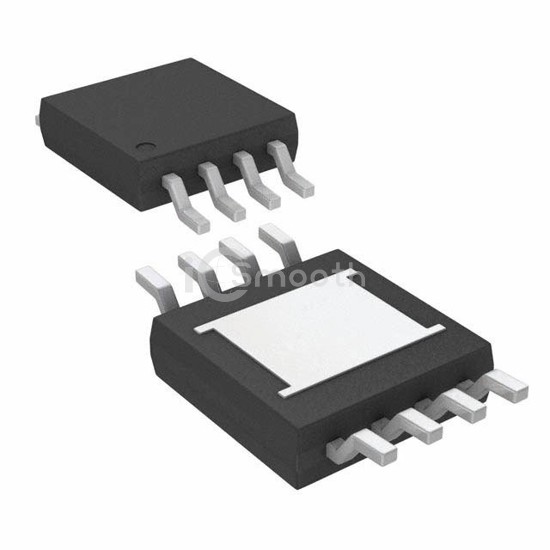

LT3580IMS8E

IC REG MULTI CONFG ADJ 2A 8MSOP

LT3580IMS8E is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG MULTI CONFG ADJ 2A 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad, current - output 2A (Switch).

Request a Quote

In Stock: 4,624

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive or Negative
Topology	Boost, SEPIC
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.5V
Voltage - Input (Max)	32V
Voltage - Output (Min/Fixed)	5V

Voltage - Output (Max)	42V (Switch)
Current - Output	2A (Switch)
Frequency - Switching	200kHz ~ 2MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package	8-MSOP-EP
