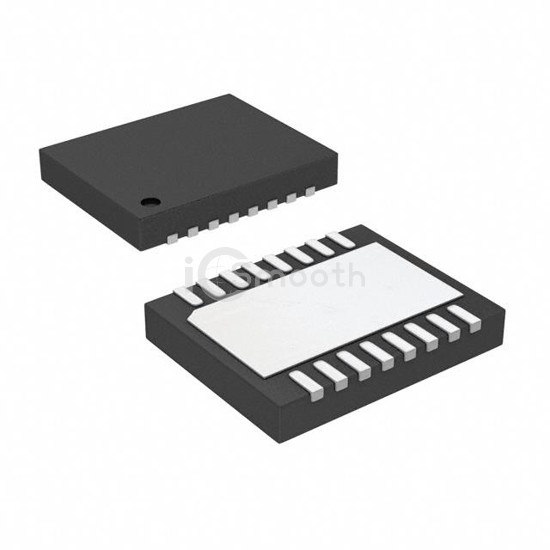

Name: LT3506IDHD#PBF
Brand: Analog Devices Inc.
SKU: LT3506IDHD#PBF
Price: 11.15 USD
Availability: InStock

REF: LT3506IDHD#PBF Analog Devices Inc.

LT3506IDHD#PBF

Analog Devices Inc.

IC REG BUCK ADJ 1.6A DL 16DFN

LT3506IDHD#PBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJ 1.6A DL 16DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFDFN Exposed Pad, current - output 1.6A.

Datasheet Request a Quote

In Stock: 1,374

Tiered Pricing USD

1+ $11.1500 —

10+ $7.6210 -32%

73+ $5.8673 -47%

146+ $5.4372 -51%

292+ $5.3000 -52% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	2
Voltage - Input (Min)	3.6V
Voltage - Input (Max)	25V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	23.25V
Current - Output	1.6A
Frequency - Switching	575kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-WFDFN Exposed Pad
Supplier Device Package	16-DFN (5x4)
