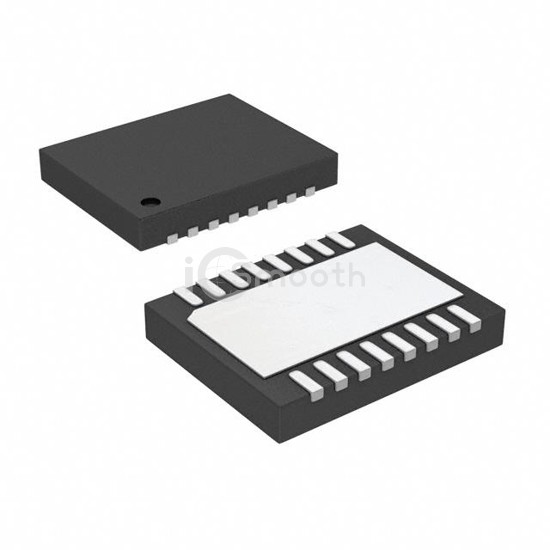

Name: LT3506AEDHD#TRPBF
Brand: Analog Devices Inc.
SKU: LT3506AEDHD#TRPBF
Price: 9.75 USD
Availability: InStock

REF: LT3506AEDHD#TRPBF Analog Devices Inc.

LT3506AEDHD#TRPBF

Analog Devices Inc.

IC REG BUCK ADJ 1.6A DL 16DFN

LT3506AEDHD#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJ 1.6A DL 16DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFDFN Exposed Pad, current - output 1.6A.

Datasheet Request a Quote

In Stock: 3,002

Tiered Pricing USD

1+ $9.7500 —

10+ $6.6070 -32%

25+ $5.7880 -41%

100+ $4.8628 -50%

250+ $4.4250 -55% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	2
Voltage - Input (Min)	3.6V
Voltage - Input (Max)	25V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	22V
Current - Output	1.6A
Frequency - Switching	1.1MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFDFN Exposed Pad
Supplier Device Package	16-DFN (5x4)
