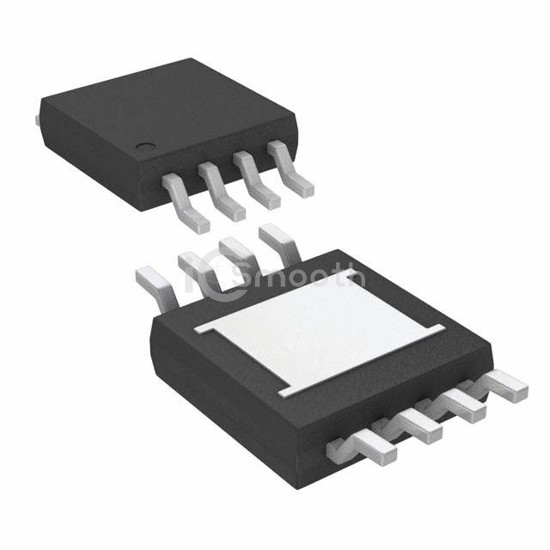

Name: LT3505EMS8E#TRPBF
Brand: Analog Devices Inc.
SKU: LT3505EMS8E#TRPBF
Price: 8.92 USD
Availability: InStock

REF: LT3505EMS8E#TRPBF Analog Devices Inc.

LT3505EMS8E#TRPBF

Analog Devices Inc.

IC REG BUCK ADJ 1.2A 8MSOP

LT3505EMS8E#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJ 1.2A 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad, current - output 1.2A.

Datasheet Request a Quote

In Stock: 1,475

Tiered Pricing USD

1+ $8.9200 —

10+ $6.0110 -33%

25+ $5.2536 -41%

100+ $4.3973 -51%

250+ $3.9768 -55%

500+ $3.9250 -56% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3.6V
Voltage - Input (Max)	36V
Voltage - Output (Min/Fixed)	0.78V

Voltage - Output (Max)	33.84V
Current - Output	1.2A
Frequency - Switching	200kHz ~ 3.01MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package	8-MSOP-EP
