Name: LT3503EDCB#TRMPBF
Brand: Analog Devices Inc.
SKU: LT3503EDCB#TRMPBF
Price: 8.00 USD
Availability: InStock

REF: LT3503EDCB#TRMPBF Analog Devices Inc.

LT3503EDCB#TRMPBF

Analog Devices Inc.

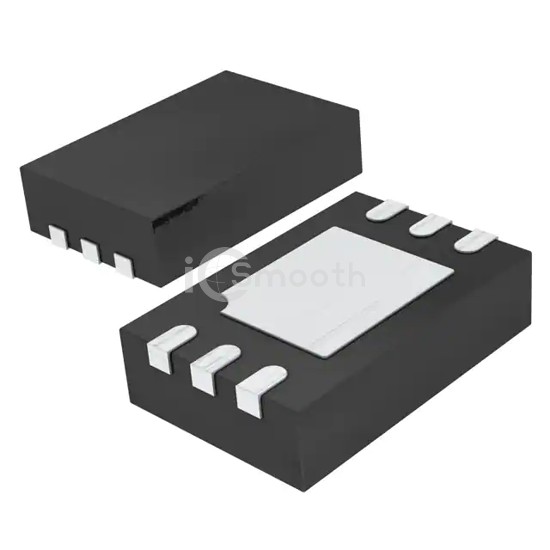

IC REG BUCK ADJUSTABLE 1A 6DFN

LT3503EDCB#TRMPBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJUSTABLE 1A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-WFDFN Exposed Pad, current - output 1A.

Datasheet Request a Quote

In Stock: 3,543

Tiered Pricing USD

1+ $8.0000 —

10+ $5.3560 -33%

25+ $4.6676 -42%

100+ $3.8885 -51%

250+ $3.5061 -56% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3.6V
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	0.78V

Voltage - Output (Max)	16.2V
Current - Output	1A
Frequency - Switching	2.2MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-WFDFN Exposed Pad
Supplier Device Package	6-DFN (2x3)
