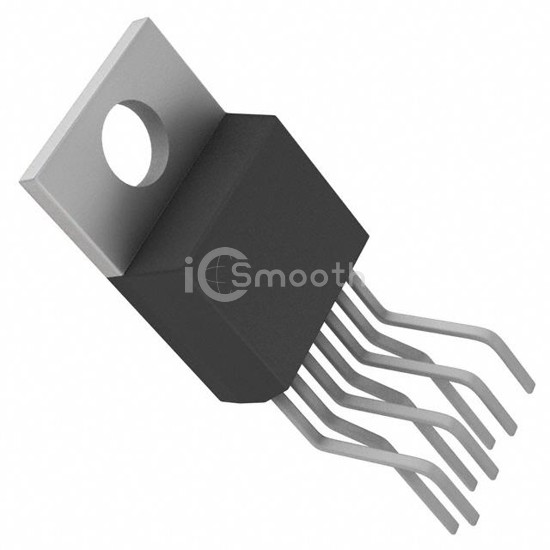

Name: LT3091HT7#PBF
Brand: Analog Devices Inc.
SKU: LT3091HT7#PBF
Price: 12.22 USD
Availability: InStock

REF: LT3091HT7#PBF Analog Devices Inc.

LT3091HT7#PBF

Analog Devices Inc.

IC REG LIN NEG ADJ 1.5A TO220-7

LT3091HT7#PBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN NEG ADJ 1.5A TO220-7. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, package / case TO-220-7 Formed Leads, current - output 1.5A.

Datasheet Request a Quote

In Stock: 4,597

Tiered Pricing USD

1+ $12.2200 —

10+ $8.3990 -31%

50+ $6.7924 -44%

100+ $6.2799 -49%

250+ $5.9875 -51% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Negative
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	-36V
Voltage - Output (Min/Fixed)	0V
Voltage - Output (Max)	-32V
Voltage Dropout (Max)	0.525V @ 1.5A
Current - Output	1.5A

Current - Quiescent (Iq)	50.5 µA
Current - Supply (Max)	-
PSRR	85dB ~ 20dB (120Hz ~ 1MHz)
Control Features	Current Limit, Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature	-40°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-220-7 Formed Leads
Supplier Device Package	TO-220-7
