Name: LT3091ER#PBF
Brand: Analog Devices Inc.
SKU: LT3091ER#PBF
Price: 10.35 USD
Availability: InStock

REF: LT3091ER#PBF Analog Devices Inc.

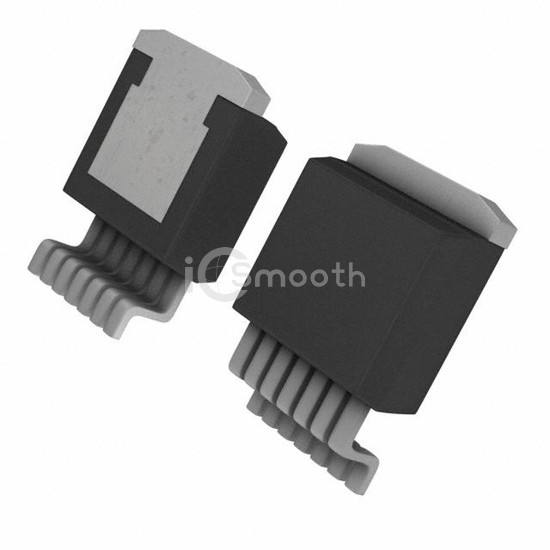

LT3091ER#PBF

Analog Devices Inc.

IC REG LIN NEG ADJ 1.5A 7DDPAK

LT3091ER#PBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN NEG ADJ 1.5A 7DDPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA, current - output 1.5A.

Datasheet Request a Quote

In Stock: 9,724

Tiered Pricing USD

1+ $10.3500 —

10+ $7.0450 -32%

50+ $5.6520 -45%

100+ $5.2076 -50%

250+ $4.8000 -54% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Negative
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	-36V
Voltage - Output (Min/Fixed)	0V
Voltage - Output (Max)	-32V
Voltage Dropout (Max)	0.525V @ 1.5A
Current - Output	1.5A

Current - Quiescent (Iq)	50.5 µA
Current - Supply (Max)	-
PSRR	85dB ~ 20dB (120Hz ~ 1MHz)
Control Features	Current Limit, Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package	7-DDPAK
