Name: LT3066IDE-5
Brand: Analog Devices Inc.
SKU: LT3066IDE-5
Availability: InStock

REF: LT3066IDE-5 Analog Devices Inc.

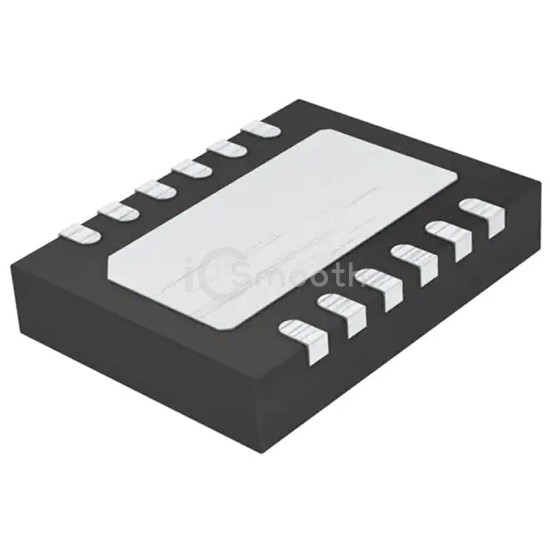

LT3066IDE-5

IC REG LINEAR 5V 500MA 12DFN

LT3066IDE-5 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 5V 500MA 12DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-WFDFN Exposed Pad, current - supply (max) 25 mA.

Request a Quote

In Stock: 2,890

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	45V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.51V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	125 µA
Current - Supply (Max)	25 mA
PSRR	70dB (120Hz)
Control Features	Current Limit, Enable, Power Good, Soft Start
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-DFN (4x3)
