LT3066EDE#PBF

In Stock: 915

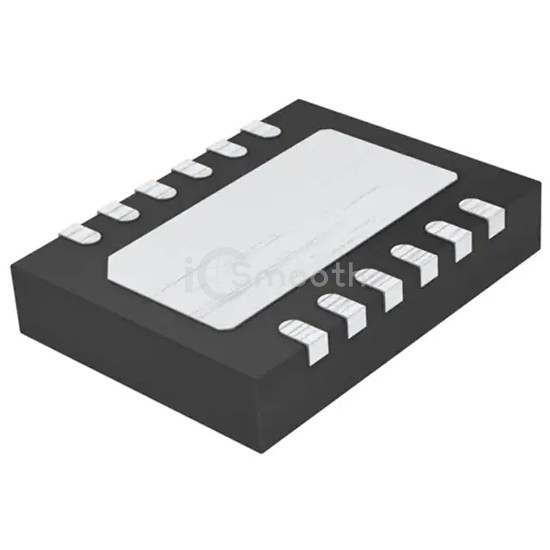

LT3066EDE#PBF - Analog Devices Inc. - PMIC - Voltage Regulators - Linear
REF: LT3066EDE#PBF Analog Devices Inc.
LT3066EDE#PBF

Analog Devices Inc.

IC REG LIN POS ADJ 500MA 12DFN

LT3066EDE#PBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 500MA 12DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-WFDFN Exposed Pad, current - supply (max) 25 mA.

Datasheet Request a Quote

In Stock: 915

Tiered Pricing USD
1+ $7.3800 —
10+ $4.9200 -33%
91+ $3.5933 -51%
182+ $3.3093 -55%
273+ $3.1651 -57%
546+ $3.0375 -59% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)45V
Voltage - Output (Min/Fixed)0.6V
Voltage - Output (Max)19V
Voltage Dropout (Max)0.51V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)125 µA
Current - Supply (Max)25 mA
PSRR85dB (120Hz)
Control FeaturesCurrent Limit, Enable, Power Good, Soft Start
Protection FeaturesOver Current, Over Temperature, Reverse Polarity
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case12-WFDFN Exposed Pad
Supplier Device Package12-DFN (4x3)
