Name: LT3055EDE#TRPBF
Brand: Analog Devices Inc.
SKU: LT3055EDE#TRPBF
Price: 7.89 USD
Availability: InStock

REF: LT3055EDE#TRPBF Analog Devices Inc.

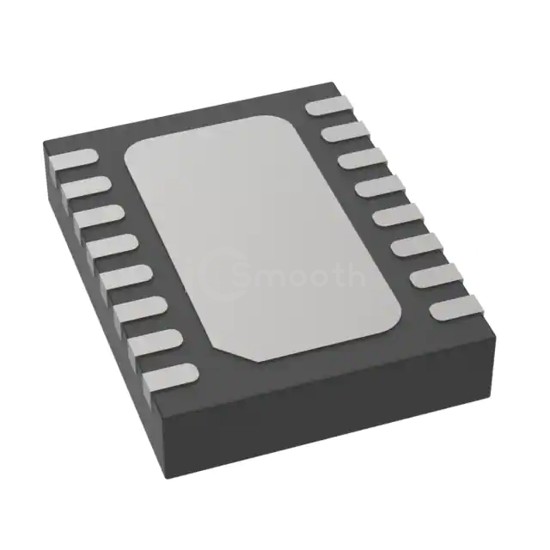

LT3055EDE#TRPBF

Analog Devices Inc.

IC REG LIN POS ADJ 500MA 16DFN

LT3055EDE#TRPBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 500MA 16DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-WFDFN Exposed Pad, current - supply (max) 25 mA.

Datasheet Request a Quote

In Stock: 1,500

Tiered Pricing USD

1+ $7.8900 —

10+ $5.2790 -33%

25+ $4.5984 -42%

100+ $3.8287 -51%

250+ $3.4508 -56%

500+ $3.3250 -58% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	45V
Voltage - Output (Min/Fixed)	0.6V
Voltage - Output (Max)	40V
Voltage Dropout (Max)	0.59V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	130 µA
Current - Supply (Max)	25 mA
PSRR	85dB (120Hz)
Control Features	Current Limit, Enable, Power Good, Soft Start
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-WFDFN Exposed Pad
Supplier Device Package	16-DFN (4x3)
