LT3032MPDE-5#TRPBF

In Stock: 1,887

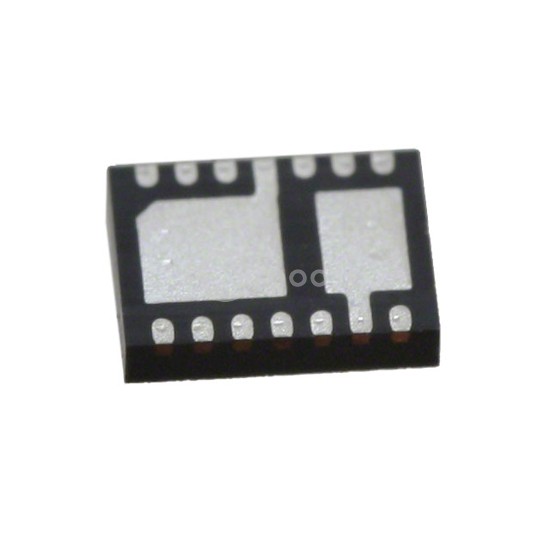

LT3032MPDE-5#TRPBF - Analog Devices Inc. - PMIC - Voltage Regulators - Linear
REF: LT3032MPDE-5#TRPBF Analog Devices Inc.
LT3032MPDE-5#TRPBF

Analog Devices Inc.

IC REG LIN +/-5V 150MA/150MA 14D

LT3032MPDE-5#TRPBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN +/-5V 150MA/150MA 14D. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 14-PowerWFDFN, current - output 150mA, 150mA.

Datasheet Request a Quote

In Stock: 1,887

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive and Negative
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)±20V
Voltage - Output (Min/Fixed)±5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.27V @ 150mA (Typ), 0.3V @ 150mA (Typ)
Current - Output150mA, 150mA
Current - Quiescent (Iq)-
Current - Supply (Max)-
PSRR68dB (120Hz), 54dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Reverse Polarity
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-PowerWFDFN
Supplier Device Package14-DFN (4x3)
