LT3032EDE-15#PBF

In Stock: 2,656

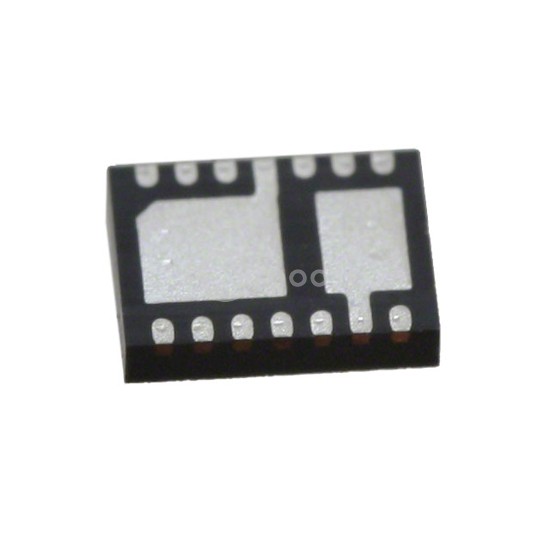

LT3032EDE-15#PBF - Analog Devices Inc. - PMIC - Voltage Regulators - Linear
REF: LT3032EDE-15#PBF Analog Devices Inc.
LT3032EDE-15#PBF

Analog Devices Inc.

IC REG LINEAR +-15V 14DFN

LT3032EDE-15#PBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR +-15V 14DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-PowerWFDFN, current - output 150mA, 150mA.

Datasheet Request a Quote

In Stock: 2,656

Tiered Pricing USD
1+ $7.8900 —
10+ $5.2790 -33%
91+ $3.8729 -51%
182+ $3.5719 -55%
273+ $3.4190 -57%
546+ $3.3250 -58% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive and Negative
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)±20V
Voltage - Output (Min/Fixed)±15V
Voltage - Output (Max)-
Voltage Dropout (Max)0.27V @ 150mA (Typ), 0.3V @ 150mA (Typ)
Current - Output150mA, 150mA
Current - Quiescent (Iq)-
Current - Supply (Max)-
PSRR68dB (120Hz), 54dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Reverse Polarity
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-PowerWFDFN
Supplier Device Package14-DFN (4x3)
