LT3032EDE-12#TRPBF

In Stock: 6,260

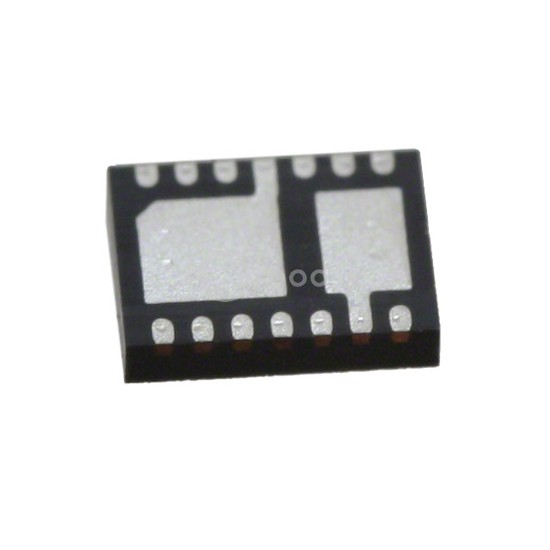

LT3032EDE-12#TRPBF - Analog Devices Inc. - PMIC - Voltage Regulators - Linear
REF: LT3032EDE-12#TRPBF Analog Devices Inc.
LT3032EDE-12#TRPBF

Analog Devices Inc.

IC REG LINEAR +-12V 14DFN

LT3032EDE-12#TRPBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR +-12V 14DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-PowerWFDFN, current - output 150mA, 150mA.

Datasheet Request a Quote

In Stock: 6,260

Tiered Pricing USD
1+ $7.8900 —
10+ $5.2790 -33%
25+ $4.5984 -42%
100+ $3.8287 -51%
250+ $3.4508 -56%
500+ $3.3250 -58% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive and Negative
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)±20V
Voltage - Output (Min/Fixed)±12V
Voltage - Output (Max)-
Voltage Dropout (Max)0.27V @ 150mA (Typ), 0.3V @ 150mA (Typ)
Current - Output150mA, 150mA
Current - Quiescent (Iq)-
Current - Supply (Max)-
PSRR68dB (120Hz), 54dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Reverse Polarity
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-PowerWFDFN
Supplier Device Package14-DFN (4x3)
