LT3029HDE#PBF

In Stock: 8,470
LT3029HDE#PBF - Analog Devices Inc. - PMIC - Voltage Regulators - Linear
REF: LT3029HDE#PBF Analog Devices Inc.

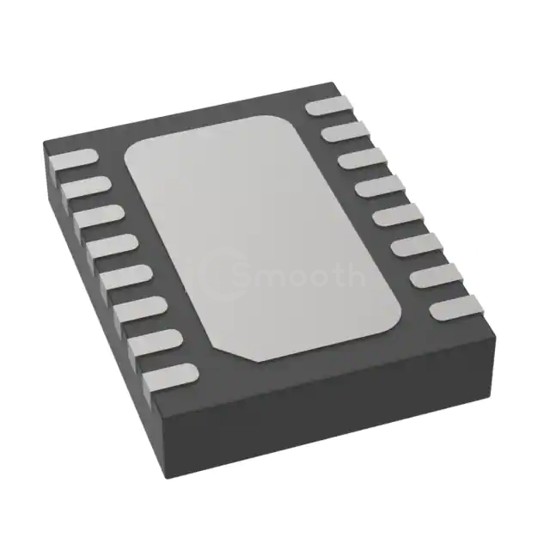

LT3029HDE#PBF

Analog Devices Inc.

IC REG LINEAR POS ADJ 16DFN

LT3029HDE#PBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR POS ADJ 16DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 16-WFDFN Exposed Pad, current - output 500mA, 500mA.

Datasheet Request a Quote

In Stock: 8,470

Tiered Pricing USD
1+ $10.9700 —
10+ $7.4930 -32%
91+ $5.6195 -49%
182+ $5.2185 -52%
273+ $5.1875 -53% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators2
Voltage - Input (Max)20V
Voltage - Output (Min/Fixed)1.215V
Voltage - Output (Max)19.5V
Voltage Dropout (Max)0.46V @ 500mA, 0.46V @ 500mA
Current - Output500mA, 500mA
Current - Quiescent (Iq)-
Current - Supply (Max)-
PSRR67dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Reverse Polarity
Operating Temperature-40°C ~ 150°C
Mounting TypeSurface Mount
Package / Case16-WFDFN Exposed Pad
Supplier Device Package16-DFN (4x3)
