LT3029EDE#PBF

In Stock: 1,995

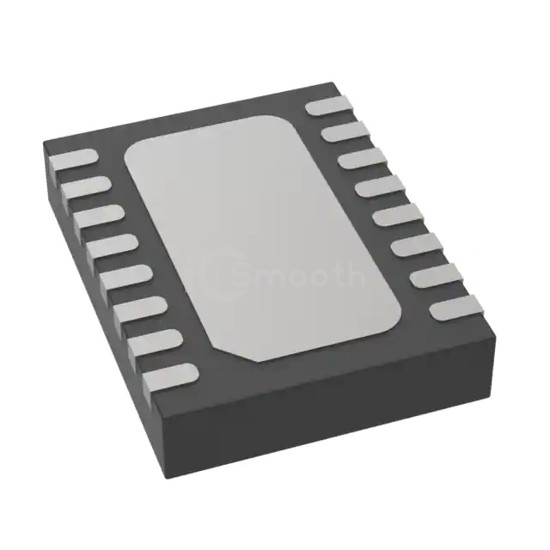

LT3029EDE#PBF - Analog Devices Inc. - PMIC - Voltage Regulators - Linear
REF: LT3029EDE#PBF Analog Devices Inc.
LT3029EDE#PBF

Analog Devices Inc.

IC REG LINEAR POS ADJ 16DFN

LT3029EDE#PBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR POS ADJ 16DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-WFDFN Exposed Pad, current - output 500mA, 500mA.

Datasheet Request a Quote

In Stock: 1,995

Tiered Pricing USD
1+ $9.5600 —
10+ $6.4740 -32%
91+ $4.8109 -50%
182+ $4.4550 -53%
273+ $4.3125 -55% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators2
Voltage - Input (Max)20V
Voltage - Output (Min/Fixed)1.215V
Voltage - Output (Max)19.5V
Voltage Dropout (Max)0.46V @ 500mA, 0.46V @ 500mA
Current - Output500mA, 500mA
Current - Quiescent (Iq)-
Current - Supply (Max)-
PSRR67dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Reverse Polarity
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-WFDFN Exposed Pad
Supplier Device Package16-DFN (4x3)
