Name: LT3029EDE
Brand: Analog Devices Inc.
SKU: LT3029EDE
Availability: InStock

REF: LT3029EDE Analog Devices Inc.

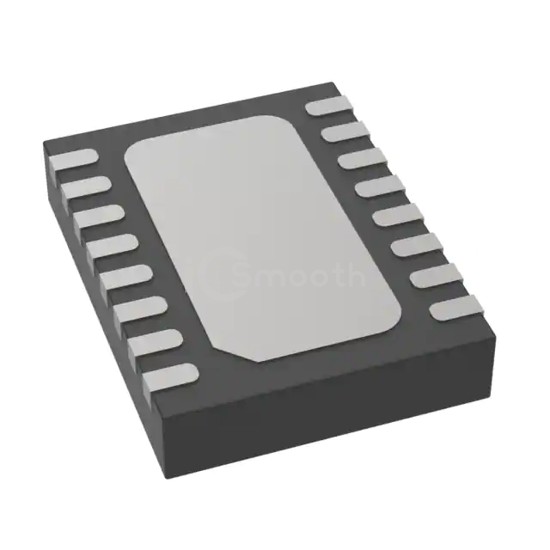

LT3029EDE

IC REG LIN POS ADJ 500MA 16DFN

LT3029EDE is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 500MA 16DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-WFDFN Exposed Pad, current - output 500mA, 500mA.

Datasheet Request a Quote

In Stock: 7,218

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	2
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	1.215V
Voltage - Output (Max)	19.5V
Voltage Dropout (Max)	0.46V @ 500mA, 0.46V @ 500mA
Current - Output	500mA, 500mA

Current - Quiescent (Iq)	-
Current - Supply (Max)	-
PSRR	67dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-WFDFN Exposed Pad
Supplier Device Package	16-DFN (4x3)
