Name: LT3021EDH
Brand: Analog Devices Inc.
SKU: LT3021EDH
Availability: InStock

REF: LT3021EDH Analog Devices Inc.

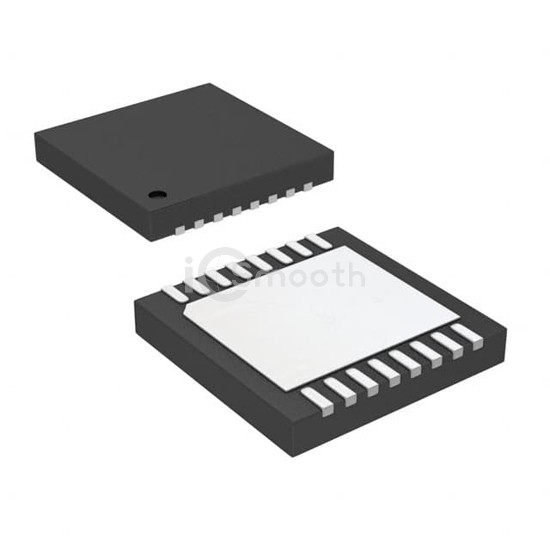

LT3021EDH

IC REG LIN POS ADJ 500MA 16DFN

LT3021EDH is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 500MA 16DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-WFDFN Exposed Pad, current - supply (max) 10 mA.

Datasheet Request a Quote

In Stock: 8,465

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	10V
Voltage - Output (Min/Fixed)	0.2V
Voltage - Output (Max)	9.5V
Voltage Dropout (Max)	0.285V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	250 µA
Current - Supply (Max)	10 mA
PSRR	70dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-WFDFN Exposed Pad
Supplier Device Package	16-DFN (5x5)
