LT3009EDC#TRPBF

In Stock: 3,868

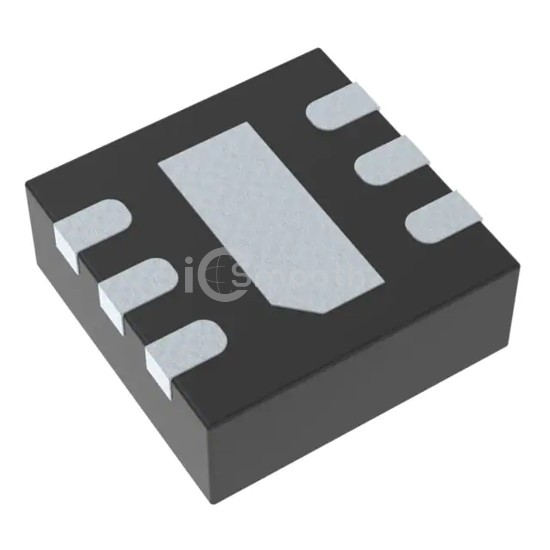

LT3009EDC#TRPBF - Analog Devices Inc. - PMIC - Voltage Regulators - Linear
REF: LT3009EDC#TRPBF Analog Devices Inc.
LT3009EDC#TRPBF

Analog Devices Inc.

IC REG LINEAR POS ADJ 20MA 6DFN

LT3009EDC#TRPBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR POS ADJ 20MA 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-WFDFN Exposed Pad, current - supply (max) 1 mA.

Datasheet Request a Quote

In Stock: 3,868

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)20V
Voltage - Output (Min/Fixed)0.6V
Voltage - Output (Max)19.55V
Voltage Dropout (Max)0.45V @ 20mA
Current - Output20mA
Current - Quiescent (Iq)6 µA
Current - Supply (Max)1 mA
PSRR72dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Reverse Polarity
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-WFDFN Exposed Pad
Supplier Device Package6-DFN (2x2)
