Name: LT3009EDC-5#TRMPBF
Brand: Analog Devices Inc.
SKU: LT3009EDC-5#TRMPBF
Price: 4.37 USD
Availability: InStock

REF: LT3009EDC-5#TRMPBF Analog Devices Inc.

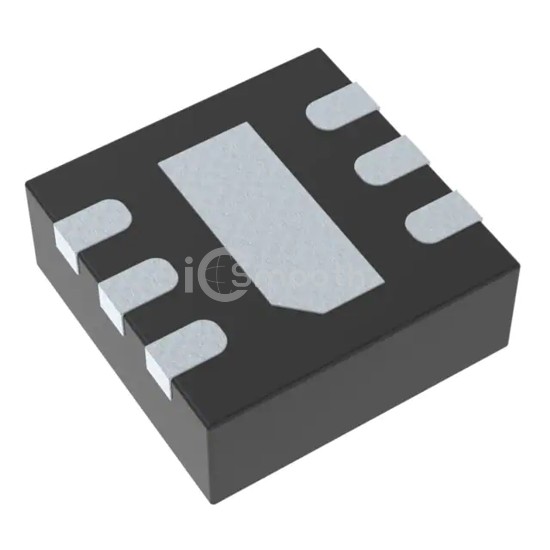

LT3009EDC-5#TRMPBF

Analog Devices Inc.

IC REG LINEAR 5V 20MA 6DFN

LT3009EDC-5#TRMPBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 5V 20MA 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-WFDFN Exposed Pad, current - supply (max) 1 mA.

Datasheet Request a Quote

In Stock: 8,948

Tiered Pricing USD

1+ $4.3700 —

10+ $2.8260 -35%

25+ $2.4228 -45%

100+ $1.9672 -55%

250+ $1.7435 -60% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.45V @ 20mA
Current - Output	20mA

Current - Quiescent (Iq)	6 µA
Current - Supply (Max)	1 mA
PSRR	56dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-WFDFN Exposed Pad
Supplier Device Package	6-DFN (2x2)
