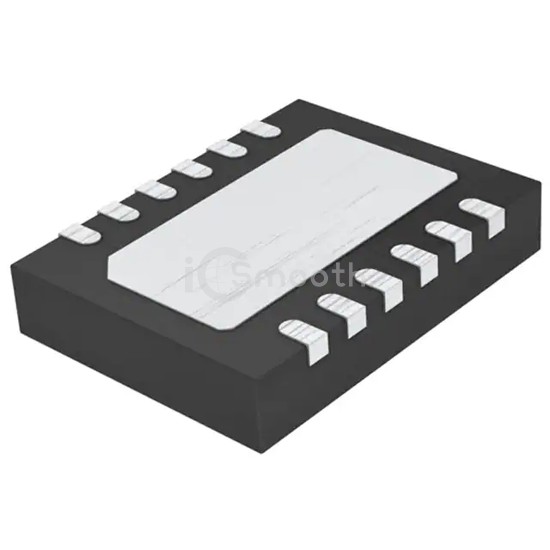

Name: LT1763IDE-5#TRPBF
Brand: Analog Devices Inc.
SKU: LT1763IDE-5#TRPBF
Price: 8.90 USD
Availability: InStock

REF: LT1763IDE-5#TRPBF Analog Devices Inc.

LT1763IDE-5#TRPBF

Analog Devices Inc.

IC REG LINEAR 5V 500MA 12DFN

LT1763IDE-5#TRPBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 5V 500MA 12DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-WFDFN Exposed Pad, current - output 500mA.

Datasheet Request a Quote

In Stock: 1,357

Tiered Pricing USD

1+ $8.9000 —

10+ $5.9960 -33%

25+ $5.2404 -41%

100+ $4.3856 -51%

250+ $3.9660 -55%

500+ $3.9125 -56% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.45V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	-
Current - Supply (Max)	-
PSRR	65dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-DFN (4x3)
