Name: LT1763IDE
Brand: Analog Devices Inc.
SKU: LT1763IDE
Availability: InStock

REF: LT1763IDE Analog Devices Inc.

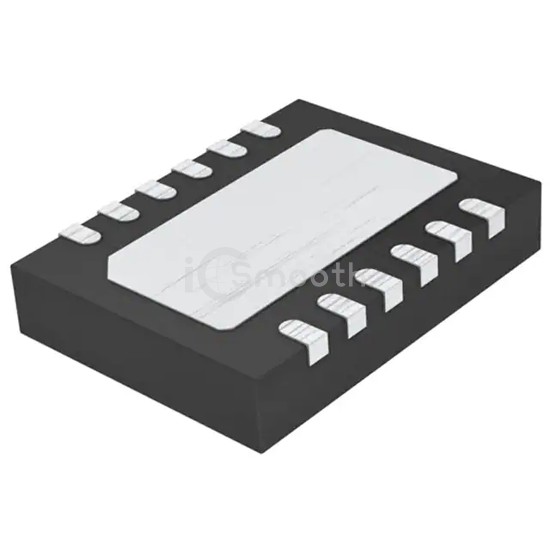

LT1763IDE

IC REG LIN POS ADJ 500MA 12DFN

LT1763IDE is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 500MA 12DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-WFDFN Exposed Pad, current - supply (max) 16 mA.

Request a Quote

In Stock: 8,325

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	1.22V
Voltage - Output (Max)	20V
Voltage Dropout (Max)	0.45V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	75 µA
Current - Supply (Max)	16 mA
PSRR	65dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-DFN (4x3)
