LT1336CS#PBF

In Stock: 8,406
LT1336CS#PBF - Analog Devices Inc. - PMIC - Gate Drivers
REF: LT1336CS#PBF Analog Devices Inc.
LT1336CS#PBF

Analog Devices Inc.

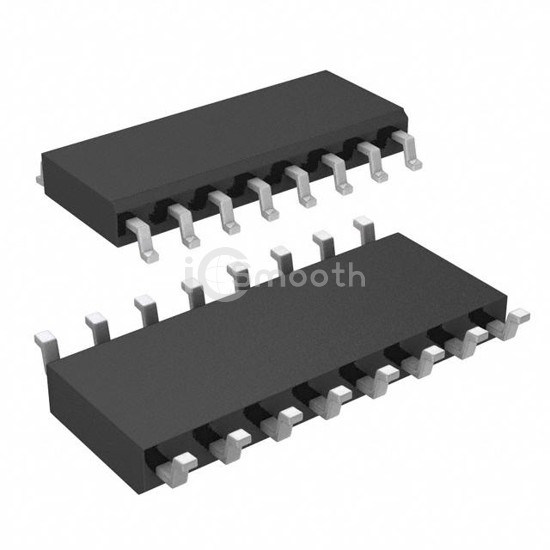

IC GATE DRVR HALF-BRIDGE 16SOIC

LT1336CS#PBF is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. IC GATE DRVR HALF-BRIDGE 16SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C (TJ), voltage - supply 10V ~ 15V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 8,406

Tiered Pricing USD
1+ $10.6900 —
10+ $7.2910 -32%
50+ $5.8586 -45%
100+ $5.4016 -49%
250+ $5.0125 -53% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply10V ~ 15V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)1.5A, 1.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)60 V
Rise / Fall Time (Typ)130ns, 60ns
Operating Temperature0°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SO
