LT1158CSW#PBF

In Stock: 1,850
LT1158CSW#PBF - Analog Devices Inc. - PMIC - Gate Drivers
REF: LT1158CSW#PBF Analog Devices Inc.
LT1158CSW#PBF

Analog Devices Inc.

IC GATE DRVR HALF-BRIDGE 16SOIC

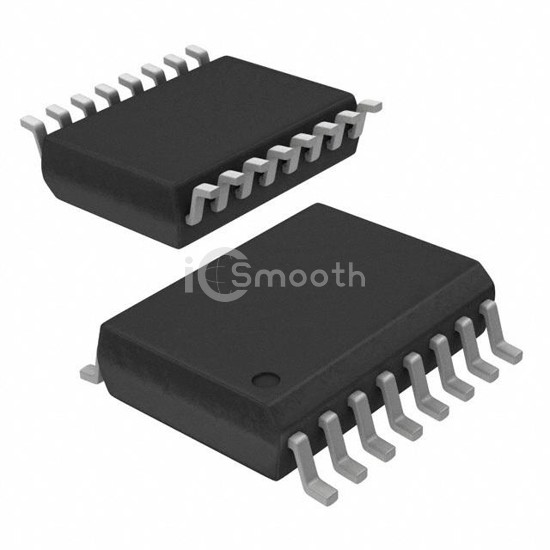

LT1158CSW#PBF is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. IC GATE DRVR HALF-BRIDGE 16SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C (TJ), voltage - supply 5V ~ 30V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,850

Tiered Pricing USD
1+ $13.1100 —
10+ $9.0520 -31%
47+ $7.3989 -44%
141+ $6.5750 -50% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply5V ~ 30V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)500mA, 500mA
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)56 V
Rise / Fall Time (Typ)130ns, 120ns
Operating Temperature0°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SO
