LT1036CT#PBF

In Stock: 8,011

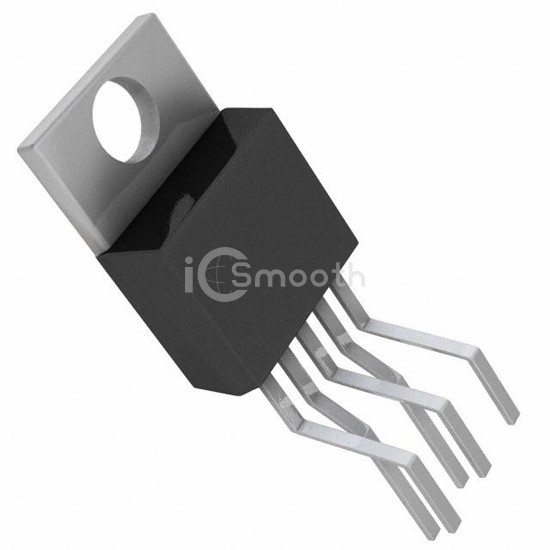

LT1036CT#PBF - Analog Devices Inc. - PMIC - Voltage Regulators - Linear
REF: LT1036CT#PBF Analog Devices Inc.
LT1036CT#PBF

Analog Devices Inc.

IC REG LINEAR 12V/5V TO220-5

LT1036CT#PBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 12V/5V TO220-5. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 125°C, package / case TO-220-5, current - supply (max) 5.5 mA.

Datasheet Request a Quote

In Stock: 8,011

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)30V
Voltage - Output (Min/Fixed)12V, 5V
Voltage - Output (Max)-
Voltage Dropout (Max)15V @ 3A, 7.2V @ 75mA (Typ)
Current - Output3A, 75mA
Current - Quiescent (Iq)4.5 mA
Current - Supply (Max)5.5 mA
PSRR60dB (50Hz ~ 500Hz), 74dB (50Hz ~ 500Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Over Voltage
Operating Temperature0°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-220-5
Supplier Device PackageTO-220-5
