Name: HMCAD1520
Brand: Analog Devices Inc.
SKU: HMCAD1520
Price: 122.02 USD
Availability: InStock

REF: HMCAD1520 Analog Devices Inc.

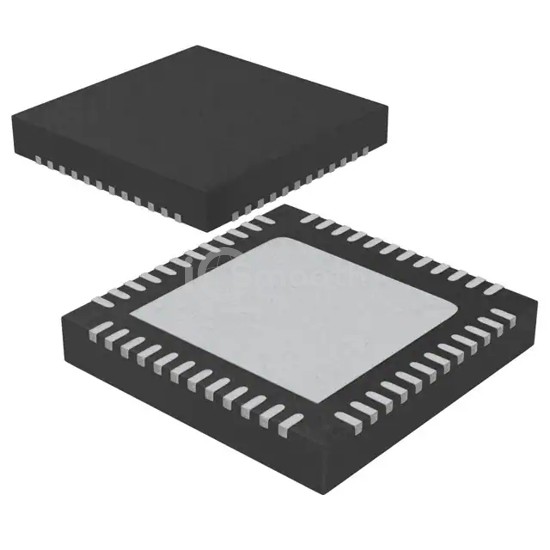

HMCAD1520

IC ADC 8/12/14/16B PIPELND 48QFN

HMCAD1520 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 8/12/14/16B PIPELND 48QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.7V ~ 2V, package / case 48-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,098

Tiered Pricing USD

1+ $122.0200 —

10+ $109.1250 -11% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	8, 12, 14, 16
Sampling Rate (Per Second)	500M, 560M, 660M, 1G
Number of Inputs	1, 2, 4
Input Type	Differential
Data Interface	LVDS - Serial
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	4

Architecture	Pipelined
Reference Type	Internal
Voltage - Supply, Analog	1.7V ~ 2V
Voltage - Supply, Digital	1.7V ~ 2V
Features	Interleavable, Simultaneous Sampling
Operating Temperature	-40°C ~ 85°C
Package / Case	48-VFQFN Exposed Pad
Supplier Device Package	48-QFN (7x7)
Mounting Type	Surface Mount
