HMC986A

In Stock: 7,352
HMC986A - Analog Devices Inc. - RF Switches
REF: HMC986A Analog Devices Inc.

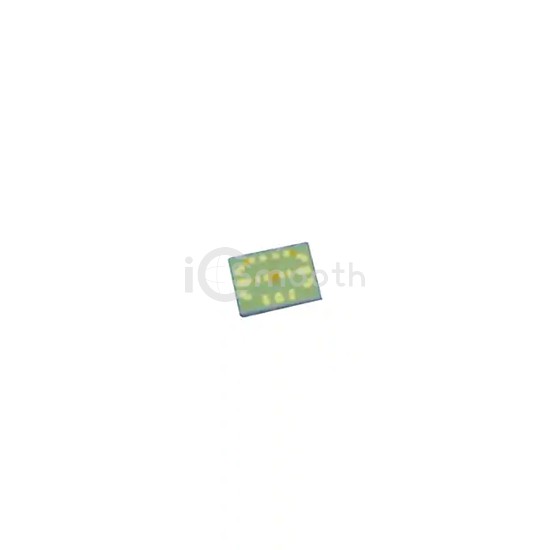

HMC986A

Analog Devices Inc.

IC RF SWITCH SPDT 50GHZ DIE

HMC986A is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPDT 50GHZ DIE. Key specifications: package / case Die, frequency range 100MHz ~ 50GHz, impedance 50Ohm, circuit SPDT.

Datasheet Request a Quote

In Stock: 7,352

Specifications

16 parameters
Product StatusActive
RF TypeRadar
TopologyReflective
CircuitSPDT
Frequency Range100MHz ~ 50GHz
Isolation36dB
Insertion Loss1.9dB
Test Frequency1GHz, 40GHz
P1dB25dBm
IIP340dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-
Package / CaseDie
Supplier Device PackageDie
