HMC849ALP4CE

In Stock: 2,653

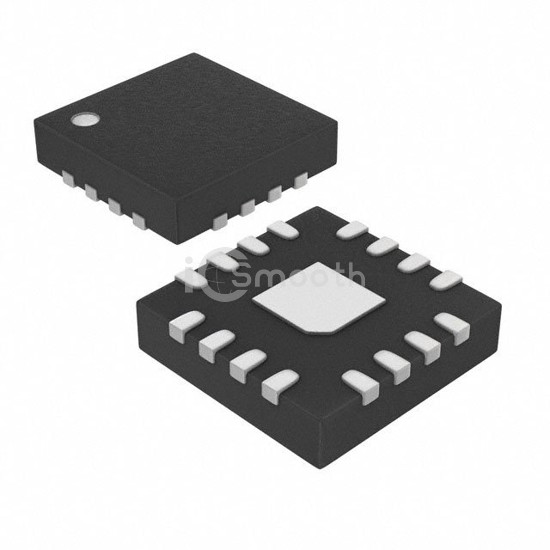

HMC849ALP4CE - Analog Devices Inc. - RF Switches
REF: HMC849ALP4CE Analog Devices Inc.
HMC849ALP4CE

Analog Devices Inc.

IC RF SWITCH SPDT 6GHZ 16QFN

HMC849ALP4CE is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPDT 6GHZ 16QFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 5V, package / case 16-VQFN Exposed Pad, frequency range 0Hz ~ 6GHz.

Datasheet Request a Quote

In Stock: 2,653

Tiered Pricing USD
1+ $9.5200 —
10+ $8.2650 -13%
25+ $7.8280 -18%
100+ $7.2284 -24%
250+ $6.8694 -28%
500+ $6.6160 -31%
1,000+ $6.3773 -33% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
Topology-
CircuitSPDT
Frequency Range0Hz ~ 6GHz
Isolation56dB
Insertion Loss1dB
Test Frequency4GHz
P1dB33dBm
IIP352dBm
Features-
Impedance50Ohm
Voltage - Supply3V ~ 5V
Operating Temperature-40°C ~ 85°C
Package / Case16-VQFN Exposed Pad
Supplier Device Package16-QFN (4x4)
