HMC843LC4BTR-R5

In Stock: 9,000

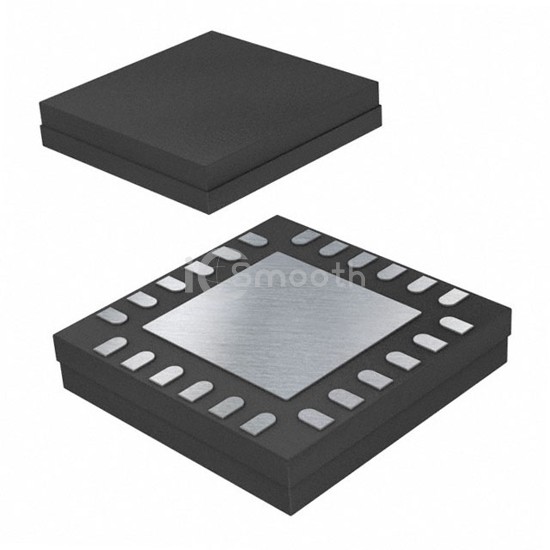

HMC843LC4BTR-R5 - Analog Devices Inc. - Logic - Gates and Inverters - Multi-Function, Configurable
REF: HMC843LC4BTR-R5 Analog Devices Inc.
HMC843LC4BTR-R5

Analog Devices Inc.

IC GATE AND/NAND/OR/NOR 24QFN

HMC843LC4BTR-R5 is a Logic - Gates and Inverters - Multi-Function, Configurable manufactured by Analog Devices Inc.. IC GATE AND/NAND/OR/NOR 24QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 70°C, voltage - supply -3.13V ~ -3.47V, package / case 24-TFCQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,000

Specifications

12 parameters
Product StatusObsolete
Logic TypeAND/NAND/NOR/OR GATE
Number of Circuits1
Number of Inputs4
Schmitt Trigger InputNo
Output TypeDifferential, Single-Ended
Current - Output High, Low-
Voltage - Supply-3.13V ~ -3.47V
Operating Temperature-40°C ~ 70°C
Mounting TypeSurface Mount
Package / Case24-TFCQFN Exposed Pad
Supplier Device Package24-CSMT (4x4)
