HMC843LC4BTR

In Stock: 4,768

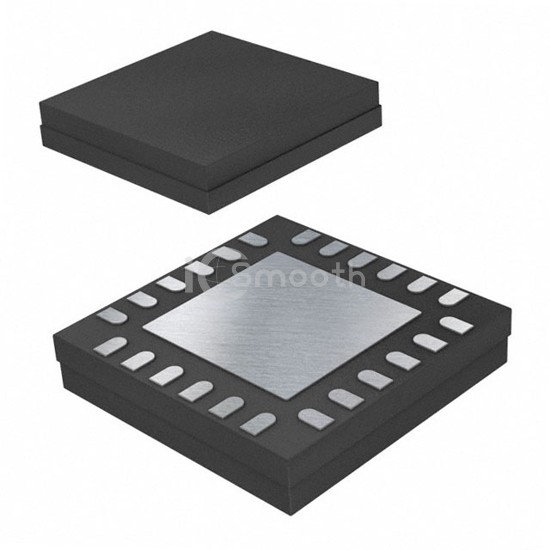

HMC843LC4BTR - Analog Devices Inc. - Logic - Gates and Inverters - Multi-Function, Configurable
REF: HMC843LC4BTR Analog Devices Inc.
HMC843LC4BTR

Analog Devices Inc.

IC AND/NAND/OR/NOR GATE PROG VO

HMC843LC4BTR is a Logic - Gates and Inverters - Multi-Function, Configurable manufactured by Analog Devices Inc.. IC AND/NAND/OR/NOR GATE PROG VO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 70°C, voltage - supply -3.13V ~ -3.47V, package / case 24-TFCQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,768

Specifications

12 parameters
Product StatusObsolete
Logic TypeAND/NAND/NOR/OR GATE
Number of Circuits1
Number of Inputs4
Schmitt Trigger InputNo
Output TypeDifferential, Single-Ended
Current - Output High, Low-
Voltage - Supply-3.13V ~ -3.47V
Operating Temperature-40°C ~ 70°C
Mounting TypeSurface Mount
Package / Case24-TFCQFN Exposed Pad
Supplier Device Package24-CSMT (4x4)
