HMC797APM5E

In Stock: 1,881

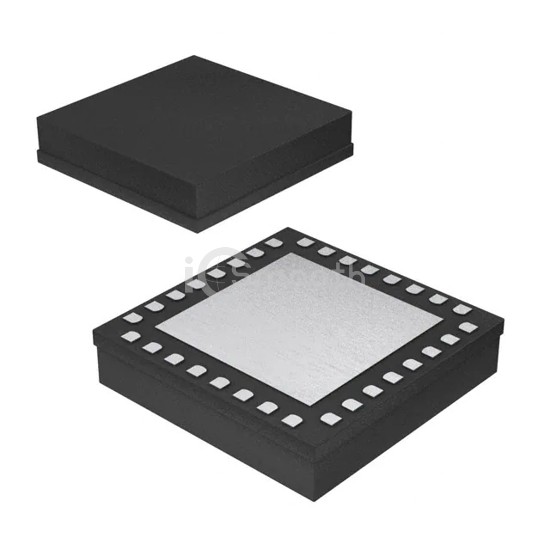

HMC797APM5E - Analog Devices Inc. - RF Amplifiers
REF: HMC797APM5E Analog Devices Inc.
HMC797APM5E

Analog Devices Inc.

IC RF AMP VSAT 0HZ-22GHZ 32LCC

HMC797APM5E is a RF Amplifiers manufactured by Analog Devices Inc.. IC RF AMP VSAT 0HZ-22GHZ 32LCC. Key specifications: mounting type Surface Mount, voltage - supply 10V, package / case 32-LFQFN Exposed Pad, CSP, current - supply 400mA.

Datasheet Request a Quote

In Stock: 1,881

Tiered Pricing USD
1+ $260.4600 —
10+ $230.6820 -11%
25+ $220.3956 -15% BEST

Specifications

12 parameters
Product StatusActive
Frequency0Hz ~ 22GHz
P1dB28dBm
Gain13.5dB
Noise Figure6dB
RF TypeVSAT
Voltage - Supply10V
Current - Supply400mA
Test Frequency22GHz
Mounting TypeSurface Mount
Package / Case32-LFQFN Exposed Pad, CSP
Supplier Device Package32-LFCSP-CAV (5x5)
