HMC641LC4TR

In Stock: 8,921

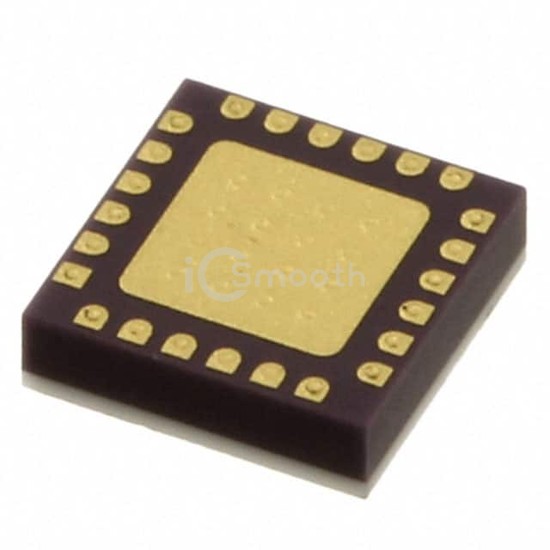

HMC641LC4TR - Analog Devices Inc. - RF Switches
REF: HMC641LC4TR Analog Devices Inc.
HMC641LC4TR

Analog Devices Inc.

IC RF SWITCH SP4T 20GHZ 24SMT

HMC641LC4TR is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SP4T 20GHZ 24SMT. Key specifications: operating temperature -40°C ~ 85°C, package / case 24-TFQFN Exposed Pad, frequency range 0Hz ~ 20GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 8,921

Specifications

16 parameters
Product StatusObsolete
RF TypeGeneral Purpose
TopologyAbsorptive
CircuitSP4T
Frequency Range0Hz ~ 20GHz
Isolation40dB
Insertion Loss2.3dB
Test Frequency20GHz
P1dB22dBm
IIP338dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-40°C ~ 85°C
Package / Case24-TFQFN Exposed Pad
Supplier Device Package24-QFN (4x4)
