HMC641

In Stock: 8,149

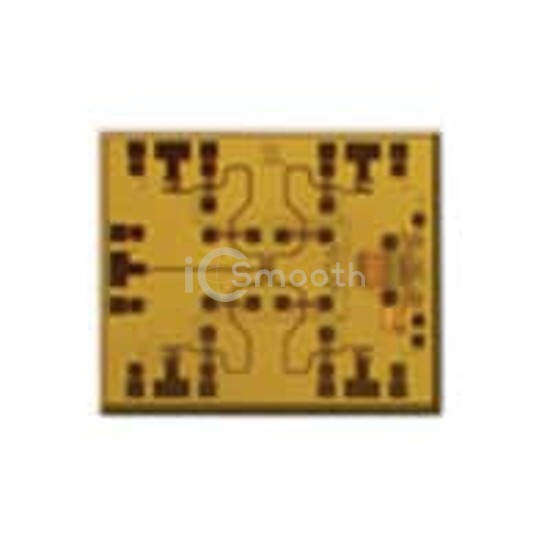

HMC641 - Analog Devices Inc. - RF Switches
REF: HMC641 Analog Devices Inc.
HMC641

Analog Devices Inc.

IC RF SWITCH SP4T 18GHZ DIE

HMC641 is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SP4T 18GHZ DIE. Key specifications: operating temperature -55°C ~ 85°C, package / case Die, frequency range 0Hz ~ 18GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 8,149

Specifications

16 parameters
Product StatusObsolete
RF TypeVSAT
TopologyAbsorptive
CircuitSP4T
Frequency Range0Hz ~ 18GHz
Isolation40dB
Insertion Loss1.8dB
Test Frequency18GHz
P1dB24dBm
IIP340dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-55°C ~ 85°C
Package / CaseDie
Supplier Device PackageDie
