HMC5805ALS6TR

In Stock: 1,881

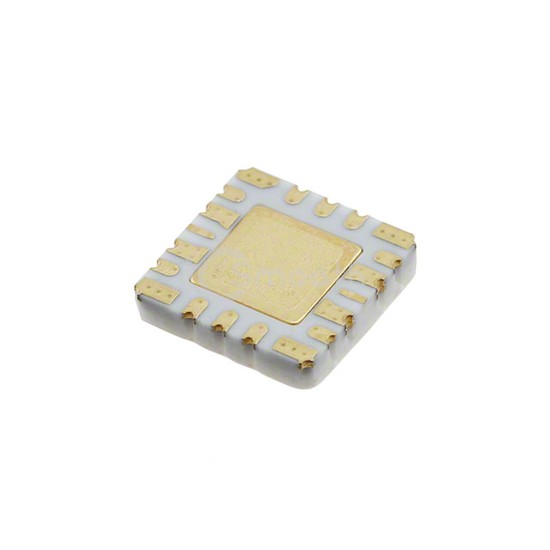

HMC5805ALS6TR - Analog Devices Inc. - RF Amplifiers
REF: HMC5805ALS6TR Analog Devices Inc.
HMC5805ALS6TR

Analog Devices Inc.

IC RF AMP VSAT 0HZ-40GHZ 16CSMT

HMC5805ALS6TR is a RF Amplifiers manufactured by Analog Devices Inc.. IC RF AMP VSAT 0HZ-40GHZ 16CSMT. Key specifications: mounting type Surface Mount, voltage - supply 10V, package / case 16-CLCC Exposed Pad, current - supply 175mA.

Datasheet Request a Quote

In Stock: 1,881

Tiered Pricing USD
1+ $196.2700 —
10+ $173.4960 -12%
25+ $165.6264 -16% BEST

Specifications

12 parameters
Product StatusActive
Frequency0Hz ~ 40GHz
P1dB22dBm
Gain13.5dB
Noise Figure7dB
RF TypeVSAT
Voltage - Supply10V
Current - Supply175mA
Test Frequency-
Mounting TypeSurface Mount
Package / Case16-CLCC Exposed Pad
Supplier Device Package16-CLCC-HS (6x6)
