HMC566

In Stock: 25

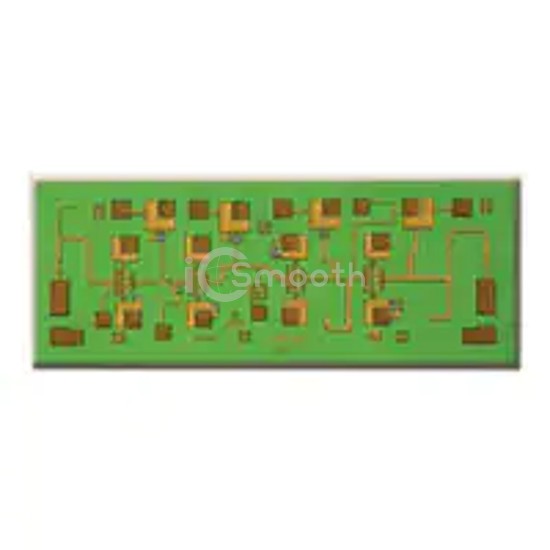

HMC566 - Analog Devices Inc. - RF Amplifiers
REF: HMC566 Analog Devices Inc.
HMC566

Analog Devices Inc.

IC RF AMP VSAT 29GHZ-36GHZ DIE

HMC566 is a RF Amplifiers manufactured by Analog Devices Inc.. IC RF AMP VSAT 29GHZ-36GHZ DIE. Key specifications: mounting type Surface Mount, voltage - supply 3V, package / case Die, current - supply 80mA.

Datasheet Request a Quote

In Stock: 25

Specifications

12 parameters
Product StatusActive
Frequency29GHz ~ 36GHz
P1dB12dBm
Gain22dB
Noise Figure2.8dB
RF TypeVSAT
Voltage - Supply3V
Current - Supply80mA
Test Frequency29GHz ~ 33GHz
Mounting TypeSurface Mount
Package / CaseDie
Supplier Device PackageDie
