HMC565-SX

In Stock: 10
HMC565-SX - Analog Devices Inc. - RF Amplifiers
REF: HMC565-SX Analog Devices Inc.

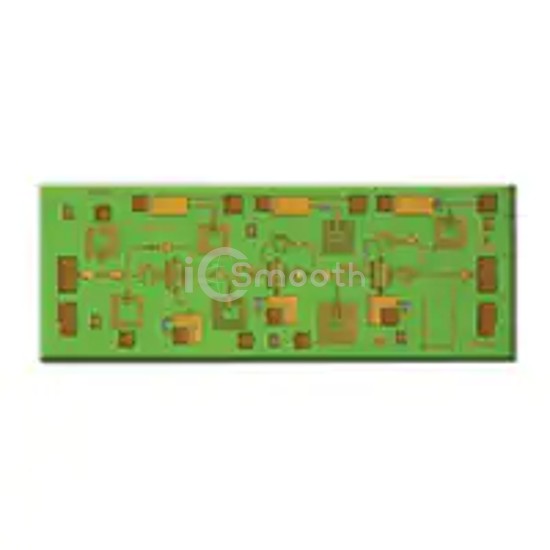

HMC565-SX

Analog Devices Inc.

IC AMP VSAT DBS 6GHZ-20GHZ DIE

HMC565-SX is a RF Amplifiers manufactured by Analog Devices Inc.. IC AMP VSAT DBS 6GHZ-20GHZ DIE. Key specifications: mounting type Surface Mount, voltage - supply 3V, package / case Die, current - supply 53mA.

Datasheet Request a Quote

In Stock: 10

Specifications

12 parameters
Product StatusActive
Frequency6GHz ~ 20GHz
P1dB10dBm
Gain21dB
Noise Figure2.5dB
RF TypeVSAT, DBS
Voltage - Supply3V
Current - Supply53mA
Test Frequency12GHz ~ 20GHz
Mounting TypeSurface Mount
Package / CaseDie
Supplier Device PackageDie
