HMC546MS8GETR

In Stock: 161

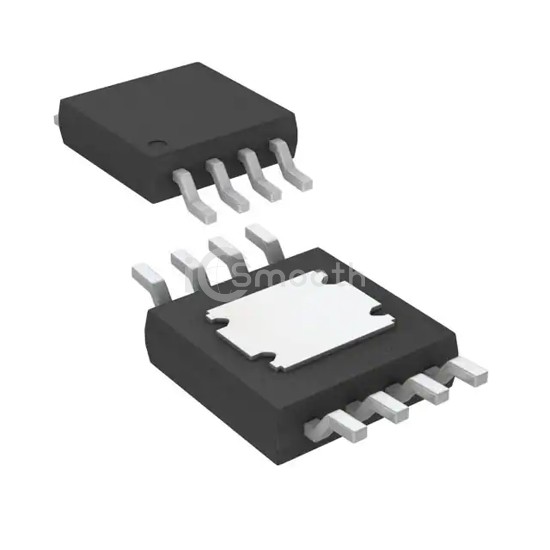

HMC546MS8GETR - Analog Devices Inc. - RF Switches
REF: HMC546MS8GETR Analog Devices Inc.
HMC546MS8GETR

Analog Devices Inc.

IC RF SWITCH SPDT 2.2GHZ 8MSOP

HMC546MS8GETR is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPDT 2.2GHZ 8MSOP. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 3V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad, frequency range 200MHz ~ 2.2GHz.

Datasheet Request a Quote

In Stock: 161

Tiered Pricing USD
1+ $8.1100 —
10+ $7.0300 -13%
25+ $6.6564 -18%
100+ $6.1430 -24%
250+ $5.8355 -28% BEST

Specifications

16 parameters
Product StatusActive
RF TypeCellular
Topology-
CircuitSPDT
Frequency Range200MHz ~ 2.2GHz
Isolation30dB
Insertion Loss1.1dB
Test Frequency2.17GHz
P1dB43dBm
IIP3-
Features-
Impedance50Ohm
Voltage - Supply3V
Operating Temperature-40°C ~ 85°C
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package8-MSOP-EP
