HMC546LP2ETR

In Stock: 4,500

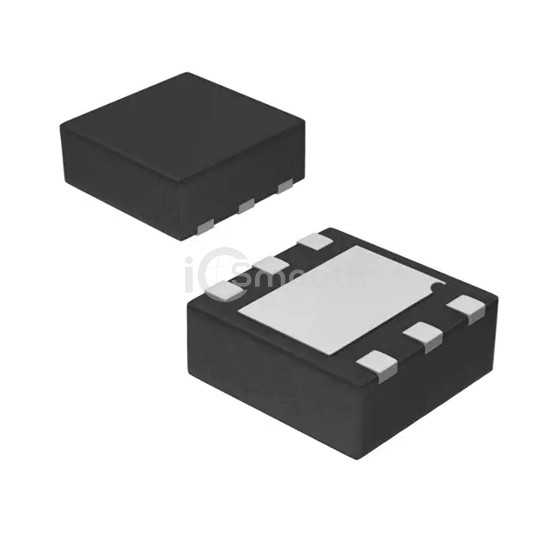

HMC546LP2ETR - Analog Devices Inc. - RF Switches
REF: HMC546LP2ETR Analog Devices Inc.
HMC546LP2ETR

Analog Devices Inc.

IC RF SWITCH SPDT 2.7GHZ 6DFN

HMC546LP2ETR is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPDT 2.7GHZ 6DFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 3V, package / case 6-TDFN Exposed Pad, frequency range 200MHz ~ 2.7GHz.

Datasheet Request a Quote

In Stock: 4,500

Specifications

16 parameters
Product StatusActive
RF TypeWiMAX / WiBro
Topology-
CircuitSPDT
Frequency Range200MHz ~ 2.7GHz
Isolation40dB
Insertion Loss0.7dB
Test Frequency2.7GHz
P1dB41dBm
IIP362dBm
Features-
Impedance50Ohm
Voltage - Supply3V
Operating Temperature-40°C ~ 85°C
Package / Case6-TDFN Exposed Pad
Supplier Device Package6-DFN (2x2)
