HMC504LC4BTR

In Stock: 28

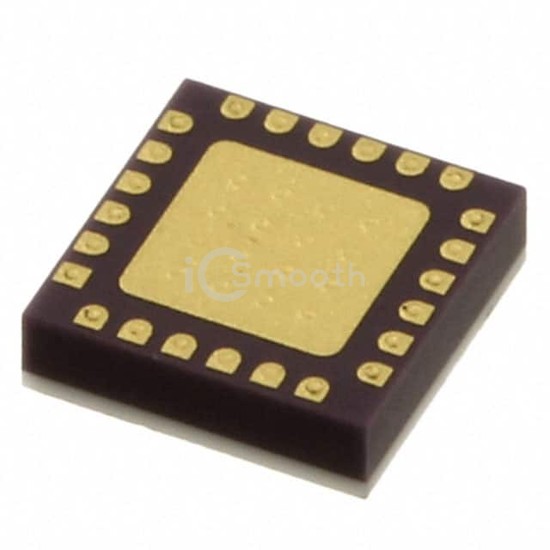

HMC504LC4BTR - Analog Devices Inc. - RF Amplifiers
REF: HMC504LC4BTR Analog Devices Inc.
HMC504LC4BTR

Analog Devices Inc.

IC RF AMP GP 14GHZ-27GHZ 24SMT

HMC504LC4BTR is a RF Amplifiers manufactured by Analog Devices Inc.. IC RF AMP GP 14GHZ-27GHZ 24SMT. Key specifications: mounting type Surface Mount, voltage - supply 4V, package / case 24-TFQFN Exposed Pad, current - supply 90mA.

Datasheet Request a Quote

In Stock: 28

Tiered Pricing USD
1+ $95.1400 —
10+ $83.6940 -12%
25+ $79.7360 -16% BEST

Specifications

12 parameters
Product StatusActive
Frequency14GHz ~ 27GHz
P1dB17dBm
Gain19dB
Noise Figure2.2dB
RF TypeGeneral Purpose
Voltage - Supply4V
Current - Supply90mA
Test Frequency-
Mounting TypeSurface Mount
Package / Case24-TFQFN Exposed Pad
Supplier Device Package24-QFN (4x4)
