HMC349ALP4CE

In Stock: 2,605

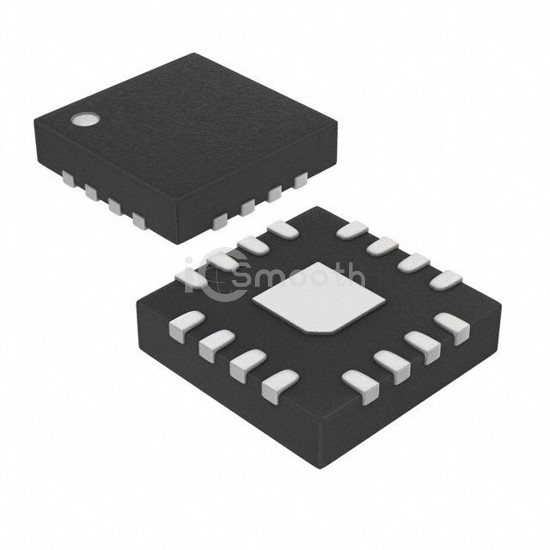

HMC349ALP4CE - Analog Devices Inc. - RF Switches
REF: HMC349ALP4CE Analog Devices Inc.
HMC349ALP4CE

Analog Devices Inc.

IC RF SWITCH SPDT 4GHZ 16QFN

HMC349ALP4CE is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPDT 4GHZ 16QFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 16-VQFN Exposed Pad, CSP, frequency range 0Hz ~ 4GHz.

Datasheet Request a Quote

In Stock: 2,605

Tiered Pricing USD
1+ $8.4000 —
10+ $7.2820 -13%
25+ $6.8956 -18%
100+ $6.3646 -24%
250+ $6.0465 -28%
500+ $5.8219 -31%
1,000+ $5.6105 -33% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyAbsorptive
CircuitSPDT
Frequency Range0Hz ~ 4GHz
Isolation62dB
Insertion Loss1.4dB
Test Frequency4GHz
P1dB34dBm
IIP3-
Features-
Impedance50Ohm
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Package / Case16-VQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP (4x4)
