HMC347B

In Stock: 201
HMC347B - Analog Devices Inc. - RF Switches
REF: HMC347B Analog Devices Inc.

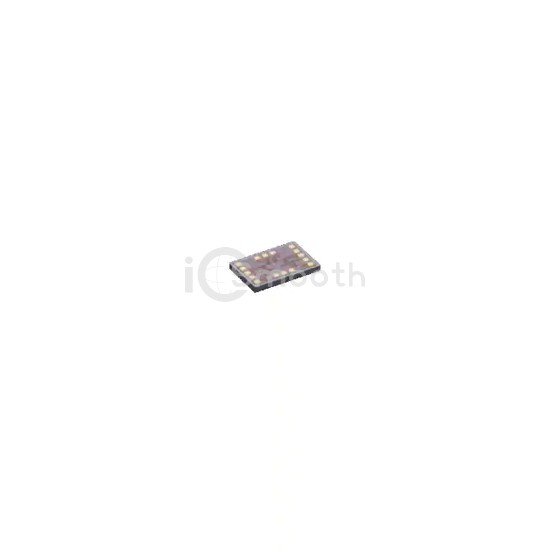

HMC347B

Analog Devices Inc.

IC RF SWITCH SPDT DIE

HMC347B is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPDT DIE. Key specifications: operating temperature -55°C ~ 85°C, package / case Die, frequency range 0.1Hz ~ 20GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 201

Specifications

16 parameters
Product StatusActive
RF TypeVSAT
TopologyAbsorptive
CircuitSPDT
Frequency Range0.1Hz ~ 20GHz
Isolation45dB
Insertion Loss1.7dB
Test Frequency20GHz
P1dB23dBm
IIP341dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-55°C ~ 85°C
Package / CaseDie
Supplier Device PackageDie
