HMC347

In Stock: 4,343

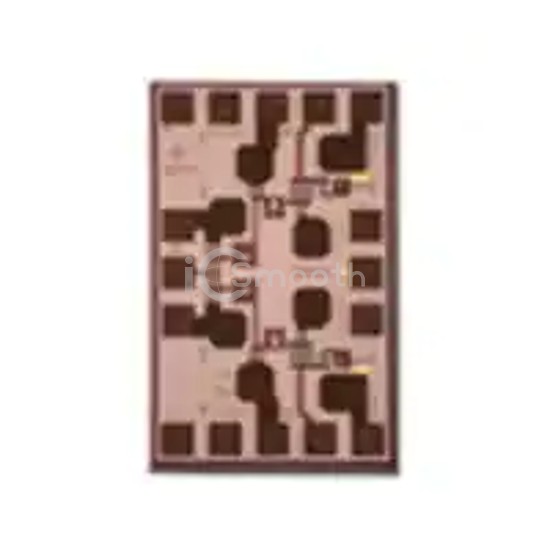

HMC347 - Analog Devices Inc. - RF Switches
REF: HMC347 Analog Devices Inc.
HMC347

Analog Devices Inc.

IC RF SWITCH SPDT 20GHZ DIE

HMC347 is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPDT 20GHZ DIE. Key specifications: operating temperature -55°C ~ 85°C, package / case Die, frequency range 0Hz ~ 20GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 4,343

Specifications

16 parameters
Product StatusObsolete
RF TypeVSAT
TopologyAbsorptive
CircuitSPDT
Frequency Range0Hz ~ 20GHz
Isolation45dB
Insertion Loss1.7dB
Test Frequency20GHz
P1dB23dBm
IIP343dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-55°C ~ 85°C
Package / CaseDie
Supplier Device PackageDie
