HMC344LH5TR

In Stock: 5,146

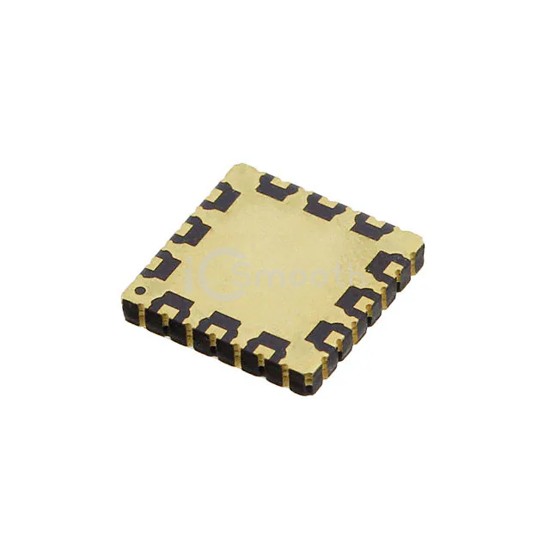

HMC344LH5TR - Analog Devices Inc. - RF Switches
REF: HMC344LH5TR Analog Devices Inc.
HMC344LH5TR

Analog Devices Inc.

IC RF SWITCH SP4T 12GHZ 12SMT

HMC344LH5TR is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SP4T 12GHZ 12SMT. Key specifications: operating temperature -40°C ~ 85°C, package / case 12-LCQFN, frequency range 0Hz ~ 12GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 5,146

Specifications

16 parameters
Product StatusObsolete
RF TypeRadar
TopologyAbsorptive
CircuitSP4T
Frequency Range0Hz ~ 12GHz
Isolation40dB
Insertion Loss2.1dB
Test Frequency8GHz
P1dB27dBm
IIP347dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-40°C ~ 85°C
Package / Case12-LCQFN
Supplier Device Package12-CSMT (5x5)
